Simply select the number of the form from the chart, put it on the holder and wind the coils. Winding forms and holder with instant coil release included. Will wind practically any single phase motor, 1800 or 3600 RPM. Eleven sets of forms-adjustment needed for length only.
#14 Winding Head is a large pair of seven-step round top heads for stators with a long bore and span such as Jet Pump motors.
#15 Winding Head is a large pair of eight-step flat top heads to wind the usual types of single phase sizes: 2HP • 3HP • 5HP • 7 1/2HP and 10 HP.

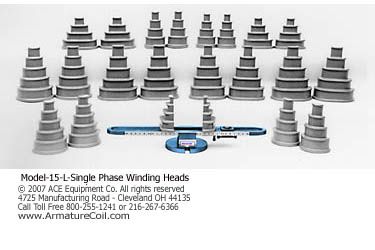

Coil Winding Head Model 15-L Complete Dimensions Chart in (Excel)
Do you know what the proper tension is for your application?
