Supporting Coil Winding Processes by Providing Remote Tension Control

ACE offers a range of innovative models of de-reeling and tension stands that helps run your production line efficiently than ever before. This air operated tension stand is available with 1 to 13 de-reeling units for handling spools of round, square, rectangular or flat wires.

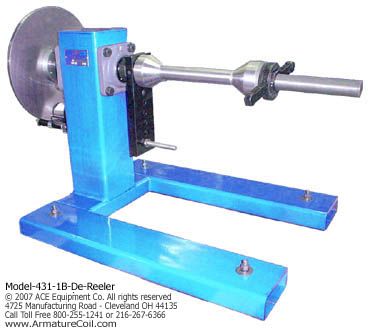

MODEL 431-1B SINGLE DE-REELING UNIT & TENSION STAND

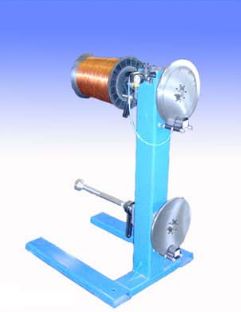

MODEL 432-2B DOUBLE DE-REELING & TENSION STAND
MODEL 434-1B (4 INDEPENDENT SHAFTS)
434-1B-C (TWO SHAFTS )

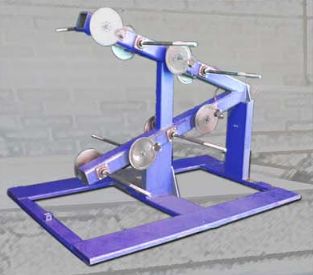

MODEL 438-1B EIGHT REEL DE-REELING AND TENSION STAND

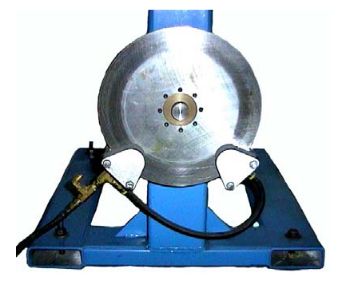

MODEL 432-2B DOUBLE BRAKE FOR ADDITIONAL TENSION

DOWNLOAD

Advantages

The ACE de-reeling tension stands are popular as:

They are designed to eliminate spool roll-in when de-reeling has stopped.
The operator can adjust the tension of the machine as per the requirements. This can be done using an adjustable air pressure regulator.
The tension on the spool can be released quickly; a cutoff switch is supplied with the machine for this purpose. This also helps the machine return to the preset tension.
They can be used as stand-alone units, or can be configured with other ACE coil winding machines.
They are ruggedly constructed with corrosion resistant steel to provide uninterrupted performance for years.

Model 438 1b Eight Reel Dereeling and Tension Stand

Model 432 2b Double Dereeling and Tension Stand

Specifications

De-reeling and tension stand models are available in a range of specifications, including:

General Specifications

Model	Dimensions	Net	Gross	Send RFQ
431-1B	20” W x 21” H x 34” L	90 Lbs.	130 Lbs.	RFQ
432-2B	26” W x 48” H x 37” L	160 Lbs.	200 Lbs.	RFQ
434-1B	56” W x 65” H x 26” L	300 Lbs.	370 Lbs.	RFQ
438-1B	96” W x 84” H x 96” L	900 Lbs.	1,100 Lbs.	RFQ

Spool Specifications

Spool capacity per unit	24" diameter x 7"to 12" width
Spool hole size	1-1/4" to 2-1/2" diameter
Spool support shafts	15" and 42" from the floor
Spool weight capacity	500 Lbs. per shaft

Brake Torque Specifications

BRAKE AIR PRESSURE	12" DIA. DISK 1 BRAKE	12" DIA. DISK 2 BRAKE	18" DIA. DISK 1 BRAKE - 1B	18" DIA. DISK 2 BRAKES - 2B
5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 105 110	4 6 7 9 10 12 14 15 17 20 22 24 26 28 30 32 35 37 39 41 43 45 47	6 8 10 13 16 19 24 29 34 39 43 46 50 54 57 61 65 69 72 75 78 81	4 6 8 10 13 18 22 26 29 33 37 41 46 53 61 67 72 76 80 84 88 93	6 8 15 20 26 35 44 52 60 67 76 83 94 105 120 130 137 150 160 168 176 186

Model 550-025 Pressure Control Valve – Add-ons to Enhance the Performance of De-reeling Stands

To augment the performance of de-reeling and tension control, ACE provides the accessory, dual pressure control valve. The device, which contains two position manual lever valve, is designed to apply tension and drag pressure simultaneously. The unit is engineered with two adjustable regulators to control tension and drag pressure.

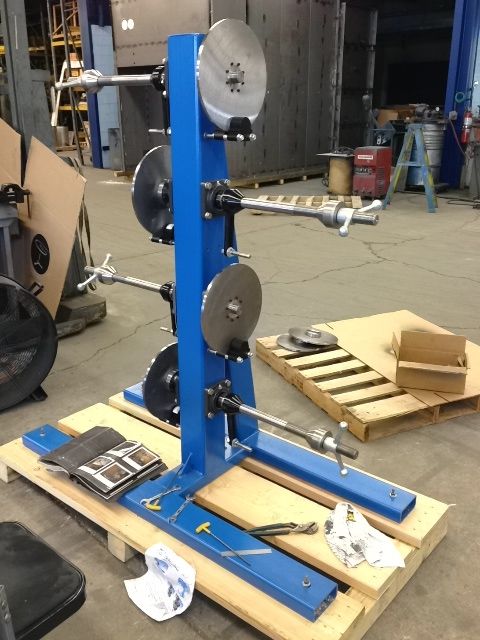

Model 434-1b with 4 Independent Shafts
