Bench-type Hand Coil Winder

(Model No. 40)

The smooth functioning of this handy piece of equipment is used for precise coil winding. This machine is compact, durable, and provides highly accurate results. It can be used specifically for prototypes in fans, generators, automobile starters, etc. Generally, their applications span several heavy industries and schools.

Highlight: Bench-type Hand Coil Winder (Model No. 40) specifically for PROTOTYPING!

Specifications

DOWNLOAD

MODEL NO. 40
DIMENSIONS	20″ L × 9″ W × 11″ H
NET WEIGHT	7 Lbs.
GROSS WEIGHT	11 Lbs.
SEND RFQ	RFQ

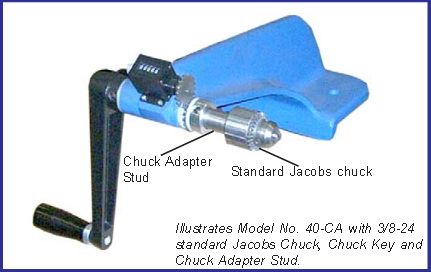

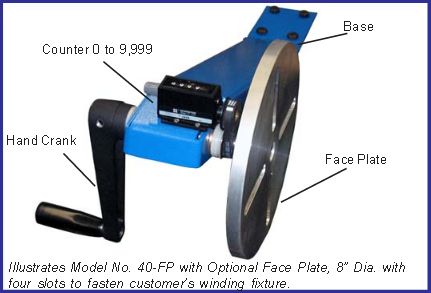

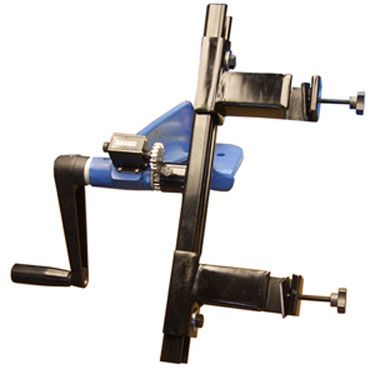

Model 40 Handy Winder

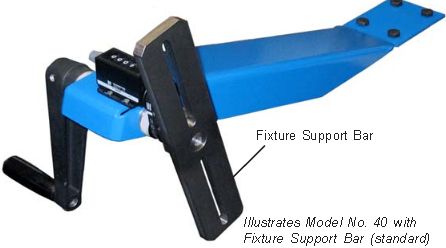

Model 40 with Fixture Support Bar

Features of Bench-Type Hand Coil Winder (Model No. 40)

This handy coil winder features:

FIXTURE SUPPORT BAR
The bar that supports the winding fixture features slots. These slots can be adjusted according to the application. The adjustable length varies from 2-1/4″ to 7-1/2″.

OPERATION

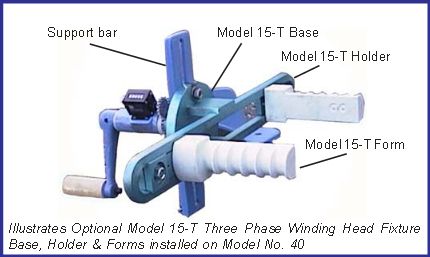

The winding fixture is mounted on the support bar. The length of the bar is adjusted according to the winding requirement. This set-up allows for manual operation. A typical operation consists of the winding fixture being revolved with the help of a hand crank and the wire being guided by hand.

MOUNTING
The base of the machine is manufactured using case aluminum alloy. It is constructed for quick and sturdy installation on a bench. This bench-mounted coil winder is compact and can be used in conjunction with wooden or metal benches.

MECHANICAL COUNTER
The mechanical counter is driven by a rotary gear. The counter has a maximum count capacity of 99,999, after which it can be quickly reset.
