PLC Controlled Auto Stop Coil Winding Machine (Model No.: 75, 76, & 77)

Armature Coil provides a range of light – medium coil winding machines. These machines use a permanent magnet DC (PMDC) motor to drive a gear reducer. This ensures that the machine provides constant torque. These machines allow the user to set the number of turns he would like the machine to make. The machine will stop at the desired number. This helps increase accuracy and reduces human error.

Complete Coil Winding & Tension System

The 70 series of light-medium coil winding machines can be configured with other ACE machines for seamless coil winding and tension maintenance functions.

DOWNLOAD

Order Processing Requirement

Please mention power requirements and model number when placing an order.

SPEED & TORQUE RANGES

MODELS	RPM SPEED		LB. FT. TORQUE		HP	SEND RFQ
MODELS	CONSTANT TORQUE	VARIABLE TORQUE	CONSTANT TORQUE	VARIABLE TORQUE	HP	SEND RFQ
75	0-490	N/A	10	N/A	1	RFQ
76	0-490	N/A	20	N/A	2	RFQ
77	0-336	336-672	31	16	2	RFQ

POWER DETAILS

MODEL	HP	AMPS	VOLTS	PHASE	HERTZ	SEND RFQ
75	1	18 F.L.	120 VAC	1P	50/60 HZ	RFQ
75	1	9 F.L.	240 VAC	1P	50/60 HZ	RFQ
76	2	18 F.L.	240 VAC	1P	50/60 HZ	RFQ
77	2	10 F.L.	240 VAC	3P	50/60 HZ	RFQ
77	2	6 F.L.	480 VAC	3P	50/60 HZ	RFQ

MOTOR DETAILS

MODEL	HP	R.P.M	VOLTS	HERTZ	SEND RFQ
75	1	2500	90 VDC	50/60 HZ	RFQ
76	2	2500	180 VDC	50/60 HZ	RFQ
77	2	1450/2900	240/480 VAC	50 HZ	RFQ
77	2	1800/3600	240/480 VAC	60 HZ	RFQ

DC CONTROL POWER DETAILS

MODEL	VOLTAGE	PHASE	HERTZ	SEND RFQ
75	120/240 VAC	1	50/60 HZ	RFQ
76	240 VAC	1	50/60 HZ	RFQ
77	240/480 VAC	3	50/60 HZ	RFQ

70 SERIES MACHINE DIMENSIONS & WEIGHT

MODEL	SIZE	NET WEIGHT	GROSS WEIGHT	SEND RFQ
75	20″ W × 35-1/2″ D × 49″ H	250	300	RFQ
76	20″ W × 35-1/2″ D × 49″ H	300	350	RFQ
77	20″ W × 35-1/2″ D × 49″ H	350	400	RFQ

FACE PLATE DIMENSIONS

MODEL NUMBER	FACE PLATE OUTPUT SHAFT DIAMETER	SEND RFQ
75	1″	RFQ
76	1 – 1/4″	RFQ
77	1 – 1/4″	RFQ

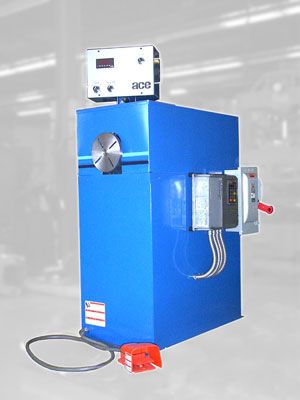

Auto Stop Ligh Duty Coil Winding Machine 77 for LIT.jpg

Features of Auto Stop Coil Winding Machines (Model No.: 75, 76, & 77)

Some of the common features of the three models are listed below:

The automatic stop feature can be used for precise coil winding. The turn counter is bi-directional in nature, meaning, it counts turns when they are being added or subtracted. The turn counter displays not just the number of turns completed but also the tachometer reading. The counter can count turns from 1 to 999,999. Once it reaches its limit, it can easily be reset. Depending on the load and speed of the application, the stopping position can be adjusted.

For precise speed control, each machine is equipped with a foot pedal. This pedal offers easy acceleration and deceleration. The foot operation leaves the hands free for the user to operate the equipment conveniently.

The machine features smooth start and stop functionalities. The acceleration and deceleration functions take place in a controlled manner keeping the machine from experiencing sudden jerks. If the machine accelerates suddenly, the wire could stretch unnaturally or break due to the sudden shock load. The machine can be operated at a specific speed range with the rated torque.

Complete speed control is with the user alone. This allows safe operation.

The 70 series coil winders can be used in conjunction with outboard support machines. For example, when used with ACE Model 65 or 66 Tailstock, these machines can be loaded with up to 240 lbs.

The double reduction gear provides constant torque.

The diameter of the faceplate measures 8″. Four slots are created in the faceplate in a way that it can accommodate winding forms and fixtures of all shapes and sizes.

The swing ranges from the center of the faceplate to 39-3/4″.

The input shaft is mounted with a durable electromagnetic spring-set disc brake, which provides precise positive stopping.

The anti-friction rollers bearing pillar blocks used to mount drive shafts are built accurately and provide self-aligning features.

These machines are integrated with double reduction precision ground gears that provide constant torque.

The speed and torque specifications of the machine can be modified by the user depending on the requirements of the application.

The rugged enclosure is fabricated using formed heavy gauge metal. This compact space contains all the electrical and mechanical components. It provides easy access for quick maintenance and repair.
